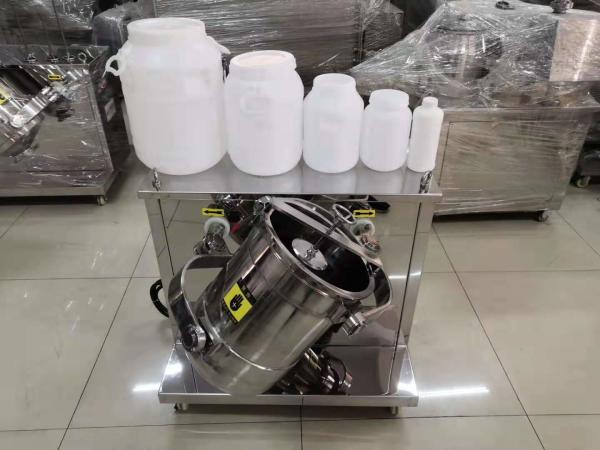

China Tencan Three Dimensional Mixer, Chemical Powder 3D Mixing Machine
Overview
This machine is suitable for uniform mixing of material, which is widely applied to ceramic, magnetic material, chemical industry, metallurgy, medicine, fodder and so on. On the basis of user requirements, sole polished stainless steel , or lined with corundum, PU and so on. For powder or material with better flow ability, double cone mixer shows significant effect, and all technical index reach the foreign product standard. Withe the advantages of energy saving, easy operation, low labor labor strength, high work efficiency,double cone mixer can mix both fine powder or various wet plant, what’s more, the same mixing result can be reached to micro-material or additive mixing.
Working Principle
The barrel for charging the materials is driven by driving shaft. The barrel body carries on the repeated level movement, rotation,turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to real
ize the various movements of the materials. Through disseminating ,gathering, agglomerating and mixing to realize uniform mixing.
Features
1. High efficiency for mixing materials at close or same granularity and density
2. It is not easy to crush granule when mixing materials.
3. The machine keeps material particle integrity without extrusion and strong wear.
4. Internal and external of the mixing vat are polished without dead angle, to avoid cross contamination of materials.
4. Available materials of mixing vat: carbon steel, stainless steel, nylon, and etc.
5. The machine is equipped with a timing device, it can set mixing time to realize automatic stop.
Parameters
| Parameters of 3D Mixer |
| Spec | Mixing Volume
(L) | Charge Volume
(L) | Rotation Speed of Main Shaft
(rpm) | Motor Power
(KW) | Dimension(mm) | Weight(kg) |
| SYH-5 | 5 | 4.5 | 0-20 | 0.25 | 600*1000*1000 | 100 |
| SYH-10 | 10 | 13.5 | 0-20 | 0.37 | 800*1200*1000 | 200 |
| SYH-20 | 20 | 18 | 0-20 | 0.37 | 1000*1400*1000 | 240 |
| SYH-50 | 50 | 45 | 0-20 | 1.1 | 1150*1400*1300 | 300 |
| SYH-100 | 100 | 90 | 0-20 | 1.5 | 1250*1800*1550 | 800 |
| SYH-200 | 200 | 180 | 0-15 | 2.2 | 1450*2000*1550 | 1000 |
| SYH-400 | 400 | 360 | 0-15 | 4 | 1650*2200*1550 | 1200 |
| SYH-600 | 600 | 540 | 0-13 | 5.5 | 1850*2500*1750 | 1500 |
| SYH-800 | 800 | 720 | 0-10 | 7.5 | 2100*2650*2000 | 1700 |
| SYH-1000 | 1000 | 900 | 0-10 | 11 | 2150*2800*2100 | 1800 |
| SYH-1200 | 1200 | 1080 | 0-9 | 11 | 2000*3000*2260 | 2000 |
| SYH-1500 | 1500 | 1350 | 0-9 | 15 | 2300*3200*2500 | 2400 |
| SYH-2000 | 2000 | 1800 | 0-8 | 18.5 | 2500*3600*2800 | 3000 |
